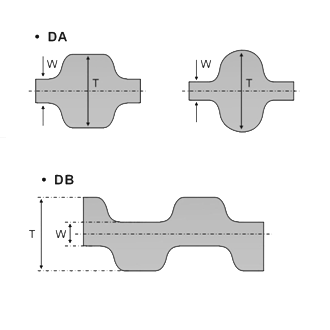

规格 Type | W | T | 规格代号 Size | 节线长(mm) Pitch Length | 齿数 Teeth Number |
D-XL | 0.508 | 3.05 | 156XL-1300XL | 391.16-3302 | 70-650 |
D-L | 0.762 | 4.58 | 180L-1148L | 457.2-2914.65 | 48-306 |
D-H | 1.372 | 5.95 | 240H-1700H | 609.6-4318 | 48-340 |
D-XH | 2.794 | 15.49 | 507XH-1540XH | 1289.05-3911.6 | 58-176 |
D-T5 | 1 | 3.4 | T5*390-T5*2220 | 390-2220 | 78-444 |
D-T10 | 2 | 7 | T10*460*T10*4280 | 460-4280 | 46-428 |
HTD.DA-3M | 0.76 | 3.1 | 390-3M-3000-3M | 390-3000 | 130-1000 |
HTD.DA-5M | 1.143 | 5.26 | 400-5M-3750-5M | 400-3750 | 80-750 |
HTD.DA-8M | 1.372 | 8.17 | 512-8M-4000-8M | 512-4000 | 64-500 |
HTD.DA-14M | 2.8 | 14.84 | 1400-14M-4326-14M | 14000-4326 | 100-309 |
HTD.DA-S5M | 0.96 | 4.25 | 400-S5M-2800-S5M | 400-2800 | 80-560 |
HTD.DA-S8M | 1.372 | 7.48 | S8M-512-S8M-4000 | 512-4000 | 64-500 |
HTD.DA-S14M | 2.8 | 12.36 | 1400-S14M-4508-S14M | 1400-4508 | 72-322 |
