P1 OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm

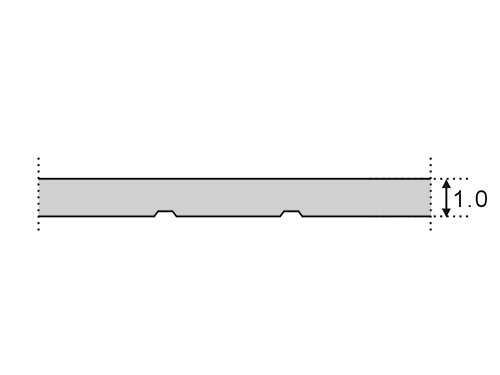

标准厚度/Standard thickness: 1.0mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 16(without back bending)
25(with back bending)
张紧轮最小直径/Minimum dia. of idler: 30mm
Standard material: black or white thermoplastic polyurethane, 92 Shore A
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Nylon fabric teeth
- Nylon fabric back
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Nylon fabric teeth
- Nylon fabric back
标准材料：黑色或白色热塑性聚氨酯，邵氏硬度92度
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 齿面加尼龙布
- 带背加尼龙布
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 齿面加尼龙布
- 带背加尼龙布
| 带宽/Belt width(mm) | 10 | 20 |
| 重量/Weight(g/m) | 20 | 40 |
| 最大负载/Max Traction Load(N) | 400 | 900 |
| 断裂强度/Breaking strength(N) | 1800 | 3700 |
JOINTED BELT INFORMATIONS
- Minimum pitch length 1500mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
- Minimum pitch length 1500mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
接驳带相关资料
- 最小接驳长度为1500mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
- 最小接驳长度为1500mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
