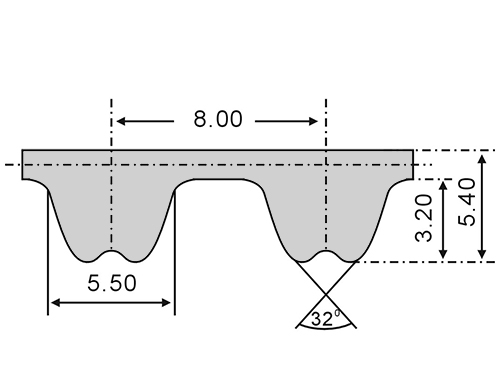

RPP8M OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm
标准厚度/Standard thickness: 5.4±0.30mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 18(without back bending)
20(with back bending)
张紧轮最小直径/Minimum dia. of idler: 45mm(running on tooth)
100mm(running on back)
Standard material: white thermoplastic polyurethane, 92 Shore A, nylon fabric teeth
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
标准材料:白色热塑性聚氨酯,邵氏硬度92度,齿面加尼龙布
标准加强芯:钢丝
有最小起定量的客户定制皮带:
- 凯芙拉线芯
- 带背加尼龙布
- 85度PUR
- 天然橡胶
- 档块
标准加强芯:钢丝
有最小起定量的客户定制皮带:
- 凯芙拉线芯
- 带背加尼龙布
- 85度PUR
- 天然橡胶
- 档块
带宽/Belt width(mm) | 10 | 15 | 20 | 30 | 50 | 85 | 100 |
重量/Weight(g/m) | 65 | 100 | 135 | 200 | 330 | 560 | 660 |
最大负载/Max Traction Load(N) | 1300 | 2000 | 2900 | 4500 | 7600 | 14000 | 16000 |
断裂强度/Breaking strength(N) | 5000 | 8000 | 11000 | 18000 | 30000 | 53000 | 63000 |
JOINTED BELT INFORMATIONS
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
接驳带相关资料
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
