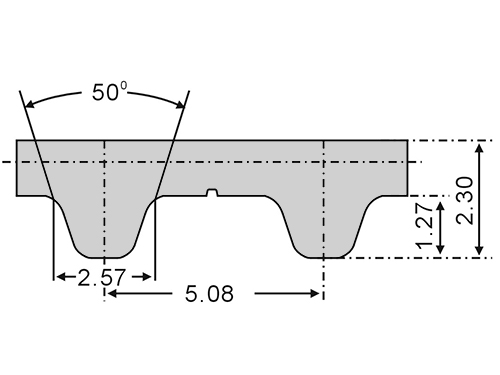

XL OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm
标准厚度/Standard thickness: 2.3±0.30mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 10(without back bending)
15(with back bending)
张紧轮最小直径/Minimum dia. of idler: 30mm
Standard material: white thermoplastic polyurethane, 92 Shore A
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
- Cleats
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
- Cleats
标准材料：白色热塑性聚氨酯，邵氏硬度92度
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
- 85度PUR
- 天然橡胶
- 档块
| 带宽/Belt width(inch) | 025 | 037 | 050 | 075 | 100 | 150 | 200 |
| 重量/Weight(g/m) | 15 | 20 | 30 | 45 | 60 | 90 | 120 |
| 最大负载/Max Traction Load(N) | 140 | 220 | 330 | 550 | 770 | 1200 | 1600 |
| 断裂强度/Breaking strength(N) | 600 | 900 | 1400 | 2300 | 3200 | 4800 | 6500 |
JOINTED BELT INFORMATIONS
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
接驳带相关资料
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
