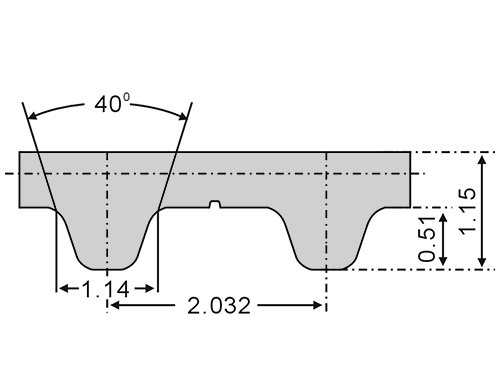

MXL OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm
标准厚度/Standard thickness: 1.15±0.15mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 10(without back bending)
18(with back bending)
张紧轮最小直径/Minimum dia. of idler: 15mm
Standard material: white thermoplastic polyurethane, 92 Shore A
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
标准材料：白色热塑性聚氨酯，邵氏硬度92度
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
| 带宽/Belt width(mm) | 4 | 6 | 10 | 16 | 50 |
| 重量/Weight(g/m) | 5 | 7 | 12 | 20 | 60 |
| 断裂强度/Breaking strength(N) | 320 | 480 | 800 | 1280 | 4000 |
JOINTED BELT INFORMATIONS
- Minimum pitch length 1200mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
- Minimum pitch length 1200mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
接驳带相关资料
- 最小接驳长度为1200mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
- 最小接驳长度为1200mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
