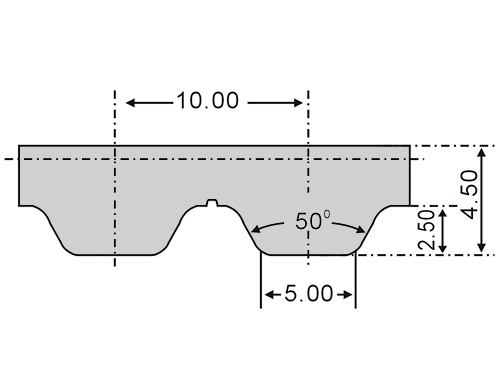

AT10 OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm
标准厚度/Standard thickness: 4.5±0.30mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 15(without back bending)
20(with back bending)
张紧轮最小直径/Minimum dia. of idler: 50mm(running on tooth)
120mm(running on back)
Standard material: white thermoplastic polyurethane, 92 Shore A
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Extra strong steel cord to ATL10
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
- Cleats
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Extra strong steel cord to ATL10
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
- PUR 85 Shore A
- Natural rubber
- Cleats
标准材料：白色热塑性聚氨酯，邵氏硬度92度
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 加强钢丝芯的ATL10
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
- 85度PUR
- 天然橡胶
标准加强芯：钢丝
有最小起定量的客户定制皮带：
- 加强钢丝芯的ATL10
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
- 85度PUR
- 天然橡胶
- 档块
| 带宽/Belt width(mm) | 16 | 25 | 32 | 50 | 75 | 100 | 150 |
| 重量/Weight(g/m) | 105 | 165 | 210 | 325 | 490 | 650 | 975 |
| 最大负载/Max Traction Load(N) | 2000 | 3500 | 4500 | 7500 | 12000 | 16000 | 25000 |
| 断裂强度/Breaking strength(N) | 9600 | 15000 | 19000 | 30000 | 45000 | 60000 | 90000 |
JOINTED BELT INFORMATIONS
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
- Minimum pitch length 850mm
- Max traction load is one half of the open ended belt
- Jointed belt only can be used in conveying systems
接驳带相关资料
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
- 最小接驳长度为850mm
- 最大负载约为开口带的一半
- 接驳带仅可以做输送用途
