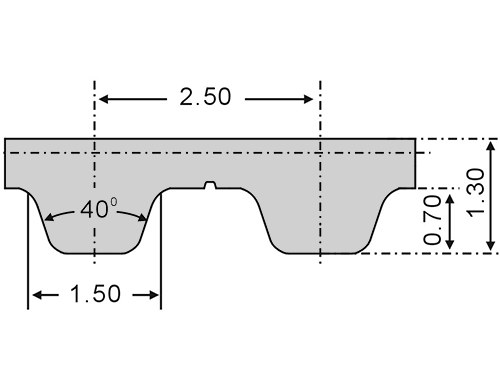

T2.5 OPEN ENDED SPECIFICATION
宽度公差/Width tolerance: ±0.5mm
标准厚度/Standard thickness: 1.3±0.15mm
标准卷长/Standard roll length: 50m or 100m
卷长公差/Roll length tolerance: ±1%
皮带轮最少齿数/Minimum number of teeth on pulley: 15(without back bending)
18(with back bending)
张紧轮最小直径/Minimum dia. of idler: 15mm(running on tooth)
18mm(running on back)
Standard material: white thermoplastic polyurethane, 92 Shore A
Standard cords: steel cords
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
Customer-made belt with minimum order quantity:
- Kevlar cords
- Nylon fabric teeth
- Nylon fabric back
标准材料:白色热塑性聚氨酯,邵氏硬度92度
标准加强芯:钢丝
有最小起定量的客户定制皮带:
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
标准加强芯:钢丝
有最小起定量的客户定制皮带:
- 凯芙拉线芯
- 齿面加尼龙布
- 带背加尼龙布
带宽/Belt width(mm) | 6 | 8 | 10 | 12 | 16 | 20 | 50 |
重量/Weight(g/m) | 10 | 15 | 18 | 22 | 29 | 35 | 90 |
断裂强度/Breaking strength(N) | 480 | 640 | 800 | 960 | 1280 | 1600 | 4000 |
